Introduction

Experience a smoother, faster ride with the Flyee T47 BB road bike disc frame. Its internal routing enhances aerodynamics while its new design offers a lighter weight. With wider rear spacing and UDH hanger, this frame is designed for peak performance. Upgrade your ride with the Flyee.

Specification

Type: Light weight road bike disc frame

Frame: Flyee (Flat mount)

Material: Toray T700 & T800 & T1000 carbon

Weave: Painting

Seat post: 27.2mm round, 0mm offset

Weight: Fork-365+-10g (Painting)

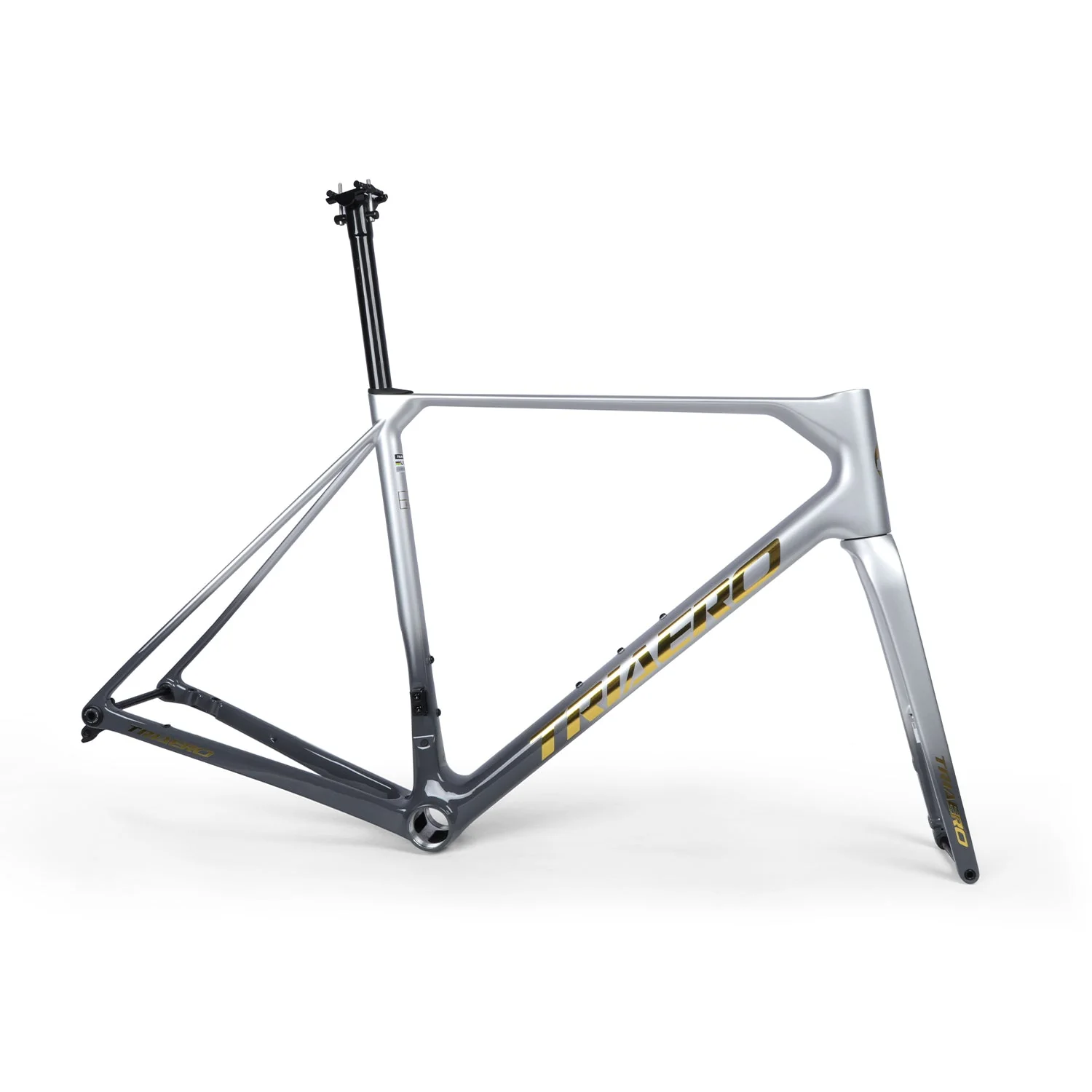

Frame in Glossy Silver Gradient Blue: 52cm-867+-20g

Frame in Glossy W2311: 52cm-890+-20g

Frame in Glossy Dark Red: 52cm-875+-20g

Headtube: 1-1/2",1-1/2"

BB: T47--85.5mm

Available size: 47/ 50/ 52/ 54/ 57cm

Max tire size: 700C x 32mm

Cable plug: Internal Cable Routing

Axle: 100*12mm/142*12mm

Rotor Size: Front-160mm; Rear-140mm

Package included: Frame+fork+seatpost+thru axles+hanger

If you order the handlebar together, the package included will add handlebar and spacers.

Features：

Lightweight and Stiffness

The Flyee frame masterfully balances lightweight design with exceptional stiffness. Utilizing cutting-edge materials and advanced manufacturing techniques, the frame is incredibly light, ensuring swift acceleration and agile climbing. Simultaneously, its optimized stiffness guarantees efficient power transfer, providing riders with a responsive and stable experience. This combination of lightweight and stiffness ensures peak performance for competitive cyclists.

Versatile Tire Clearance

Our Flyee road bike frame offers versatile tire clearance, allowing you to fit a wide range of tire sizes from 25c to 32c. This flexibility ensures optimal performance and comfort on various terrains, providing you with the adaptability to switch between smooth road rides and rougher paths effortlessly.

Internal Cable Routing

Achieving a clean, aerodynamic profile, the internal cable routing not only enhances the bike's aesthetics but also protects cables from the elements, ensuring smoother operation and reduced maintenance.

T47 Bottom Bracket

The T47 bottom bracket offers enhanced durability and superior performance. Its threaded design provides a secure and creak-free fit, while the larger diameter allows for increased stiffness and power transfer. This bottom bracket standard also simplifies maintenance and ensures compatibility with a wide range of cranksets, making it a reliable and efficient choice for serious cyclists.

Universal Derailleur Hanger (UDH) Technology

Our Flyee incorporates the cutting-edge UDH system, which represents a significant advancement in derailleur hanger design. With UDH, finding a compatible hanger becomes straightforward, no matter where your adventures take you. This feature is a game-changer for riders who value reliability and ease of maintenance, especially in remote areas or during long tours.

UCI Certification

The ICAN Flyee frame is certified and approved by the Union Cycliste Internationale (UCI), which governs internationalbicycle racing. Only products that pass rigorous testing receive this certification, allowing them to be used in UCI-sanctioned road races.

Custom Painting Service for Personalized Style

Elevate your Flyee road bike with our bespoke painting service, offering unparalleled customization to reflect your unique style and personality. Our service allows you to create a personalized paint job that truly makes your bike stand out. Visit our painting website at icancustompaint.com to bring your dream design to life.
